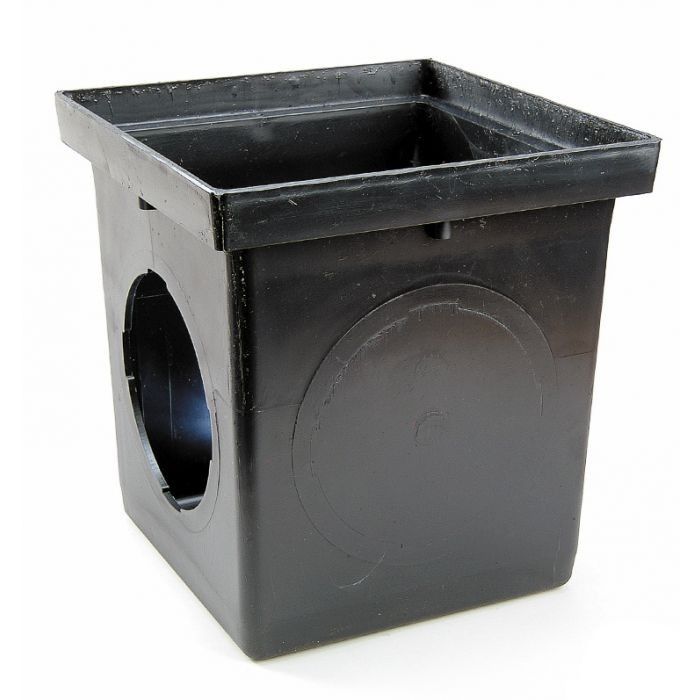

NDS 12" Catch Basin (2 Openings)

33,53 US$

Dimensions: L:12-3/8" x W:12-3/8" x H:12-15/16"

Call in directly to 803-324-3225 for a personalize quote.

Product Details: NDS 12" Catch Basin, 2 Openings

The 12" Catch Basin, 2 Openings is part of the NDS drainage system. Catch basins have a sump area that collects debris and prevents clogging of the drainage system and are used to protect property against water damage caused by excess rainwater or irrigation. Common applications are to collect water from downspouts, planter areas, and landscape sections. Catch basins are suitable for light vehicular traffic, for both landscape and hardscape applications and are able to withstand normal abuse in landscaping applications. NDS offers a variety of accessories to help customize your drainage system including universal adapters, filters, and end plugs. This product is part of the NDS 12" Catch Basin Series.

Quick Look

  • UV inhibitors
  • ADA Compliant
  • Collects excess surface water from lawn, landscape, residential driveways and garages
  • Suitable for light vehicular traffic when properly installed
  • Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
  • Keyed openings on basin lock outlet adapters in place
  • Catch basin universal outlet must be used to connect pipes to the catch basin; either part #1206,#1242,#1243,#1245, or #1266 Universal Outlet for each opening
  • Product Class: 10ND
  • 9” and 12” catch basins have a cut-out in the bottom of the boxes. If this is removed, then the outlets that connect to the 9” and 12” catch basins can be connected
  • The connections between the catch basin and the sump boxes, risers, and universal outlets are soil tight, not water tight. Adding a bead of water proof silicone on each surface being connected will create a water tight connection
  • Fade resistant, rust resistant, lightweight, sump area collects debris and helps prevent clogged pipes
  • Available in 9", 12", 18" and 24 sizes
  • NDS 12" Catch Basin Series
  • Product Class: 10ND
Shop the entire line of NDS 12" Catch Basins Products

Additional Resources

NDS 12" Catch Basin (2 Openings) Technical Specifications
How To Stop Water From Puddling
Using NDS Catch Basins to Capture Run-off
How To Choose The Right Size NDS Catch Basin
Installing NDS Catch Basins
Specifications Sheets: Catch Basin Flow Capacities

Installation Instructions

NDS 12" Catch Basin Installation for Landscape Applications
NDS 12" Catch Basin Installation for Pedestrian and Light Vehicular Traffic Applications
NDS 12" Catch Basin Installation for Vehicular Traffic Applications (Load Class C)
NDS 12" Catch Basin Plumbing Connection
NDS 12" Catch Basin Installation for Landscape Application with Riser
Más Información
Numero de parte 1200
Longitud 12-3/8"
Anchura 12-3/8"
Altura 12-15/16"
Peso 4.25
