Stadium & Recreation Drainage

A venue is several drainage sites sharing one address

A stadium, arena, fieldhouse or municipal recreation complex needs coordinated drainage for its roof, seating bowl, concourses, service areas, sports surfaces and grounds. A roof leader delivers concentrated flow; a plaza produces sheet runoff; a depressed truck tunnel may depend on a pump. A running track edge and a kitchen floor have different requirements again. Draw the catchments and destinations before choosing products.

Record event conversions as well as daily use: delivery trucks, lifts, loaded concession carts, maintenance equipment and emergency access can govern a drain that normally sees only pedestrians. Keep collection points and maintenance covers clear of gate queues and required egress paths. For a retrofit, allow time for utility checks, structural review, waterproofing, concrete curing and reopening inspection within the venue schedule.

Where the water goes on a venue site

• Roofs and canopies: coordinate roof drains, leaders and required secondary drainage with the building design. Avoid releasing roof water onto an accessible route or simply adding it to an undersized plaza channel.
• Seating bowls, concourses and plazas: use surface grades to direct water to point drains or linear interception. Elevated decks also need compatible waterproofing connections and movement-joint details.
• Ramp bottoms, tunnels and docks: check inlet bypass and downstream surcharge against the building threshold. Consider upstream diversion, storage, an emergency overflow route and pumping where gravity discharge is unavailable.
• Fields, running tracks and grounds: distinguish runoff at hardscape edges from water moving through turf, rootzones and permeable bases. Keep hard inlets out of active play and run-off areas unless the sports design explicitly accommodates them.
• Concessions, kitchens and aquatic areas: identify washwater, food waste, pool water and stormwater separately before connecting outlets.

A channel can intercept a broad flow path; a basin can collect runoff where grading brings it to an inlet. Either can miss water if its location, inlet capacity or approach grades are wrong. Regrading, several point drains, permeable landscaping or detention may be more appropriate than a continuous trench.

Do the volume math before the product math

Illustrative rainfall arithmetic: 1 inch of rain on 1,000 sq ft is about 623 gallons; on a 100,000 sq ft roof it is about 62,300 gallons, before losses or storage. At 1 in./hr, one acre receives about 1.01 cubic feet per second (453 gpm). Four acres at 2 in./hr receive about 8.07 cfs (3,620 gpm). These assume uniform rainfall and complete runoff; they do not establish when a catchment reaches peak discharge.

For design, use the local design storm, runoff characteristics, time of concentration and allowable ponding. Storage needs an inflow/outflow analysis, not just peak GPM. Evaluate each contributing area with the runoff calculator and Sizing for Storms, then coordinate shared downstream pipes.

Check the inlet, channel, and discharge route

A wider trench does not cure a restricted outlet. As a screening example, Manning's equation for a full circular pipe with actual internal diameter 4 or 6 inches, roughness n = 0.011 and energy slope 0.01 gives approximately 101 or 298 gpm respectively. This assumes uniform flow and excludes entrance, bend, junction and outlet losses; it is not a rating for a nominal pipe connection.

Check approach flow, grate capture, bypass, channel depth, outlet head and the receiving water level. Select pipe slope from available elevations, hydraulic calculations and applicable requirements; a pre-sloped channel does not create fall in the pavement or downstream pipe. Account for blocked inlets and safe overflow at critical tunnel entries. FHWA HEC-22 provides storm-drain, inlet, detention and pump-station design methods.

Keep washwater out of unapproved stormwater connections

Post-event pressure washing can carry food residue, grease, litter and cleaning chemicals. Dry-clean debris first; plan capture, pretreatment and an approved disposal route with the local sewer and stormwater authorities. A basket removes some solids but does not treat dissolved chemicals or approve a discharge. Portland's pressure-washing rules illustrate the distinction between storm-drain restrictions and sanitary-sewer authorization; the venue's own jurisdiction governs.

Load class from the gate line to the truck tunnel

Specify the complete channel, grate, rail, fastening and support arrangement for the traffic. Installation details differ by product, pavement and loading; concrete encasement is not one universal thickness. Record wheel and axle loads, tire type, crossing speed, turning and braking. A metal top is not automatically adequate, and a composite grate is not automatically unsuitable for a public concourse.

• EN 1433 A15: 15 kN test force; areas used only by pedestrians and cyclists.
• EN 1433 B125: 125 kN; pedestrian areas and car parks where the selected assembly and traffic permit.
• EN 1433 C250: 250 kN; kerb and road-edge locations, not a universal truck-lane specification.
• EN 1433 D400: 400 kN; road traffic locations, subject to the installation.
• EN 1433 E600 / F900: 600 / 900 kN; high or exceptionally high wheel-load locations requiring the corresponding assembly and project design.

These test forces are not allowable vehicle weights. NDS letter classes use a separate load guidance system; do not equate NDS Class D with EN D400 or convert either into H-20, HS-25 or AASHTO M306 compliance. See the load recommendation guide and the specified manufacturer's documentation. Keep trailer landing gear, outriggers and jack stands off drains unless the actual concentrated loading is expressly approved.

On accessible walking surfaces, ADA 302.3 limits openings by passage of a sphere larger than 1/2 inch; elongated openings must have their long dimension perpendicular to dominant travel. Check the actual top, gaps and orientation, including intersections where people approach from several directions. A mesh, perforated or honeycomb pattern alone establishes nothing. Heel resistance, small caster performance, bicycle tires, athletic spikes and barefoot use require separate evaluation.

Set finished elevations to the product detail and route requirements. Flush is not inherently a trip hazard, and recessing every grate by 1/4 inch is not a universal safety rule. Check stable support, wet traction, edges and changes in level using the Access Board's floor-surface guidance. Sports-surface details also need approval by the track or field designer.

The turf question: surface and subsurface drainage work together

Natural turf drainage depends on surface contours, soil infiltration, compaction, rootzone construction and any subsurface collectors. A perimeter trench cannot repair a compacted or poorly draining soil profile. Penn State's athletic-field resources address these distinct construction and maintenance needs. Do not apply putting-green lateral spacing to an athletic field by default.

Synthetic turf also needs a designed drainage path through or across its carpet, infill, shock pad and base to collectors and an outlet. Coordinate those layers with the turf supplier. Locate surface channels at the approved perimeter or hardscape transition; protect playing and run-off areas from exposed hard edges and unsuitable openings. Catch basins at grounds low points need their own grading and safety review.

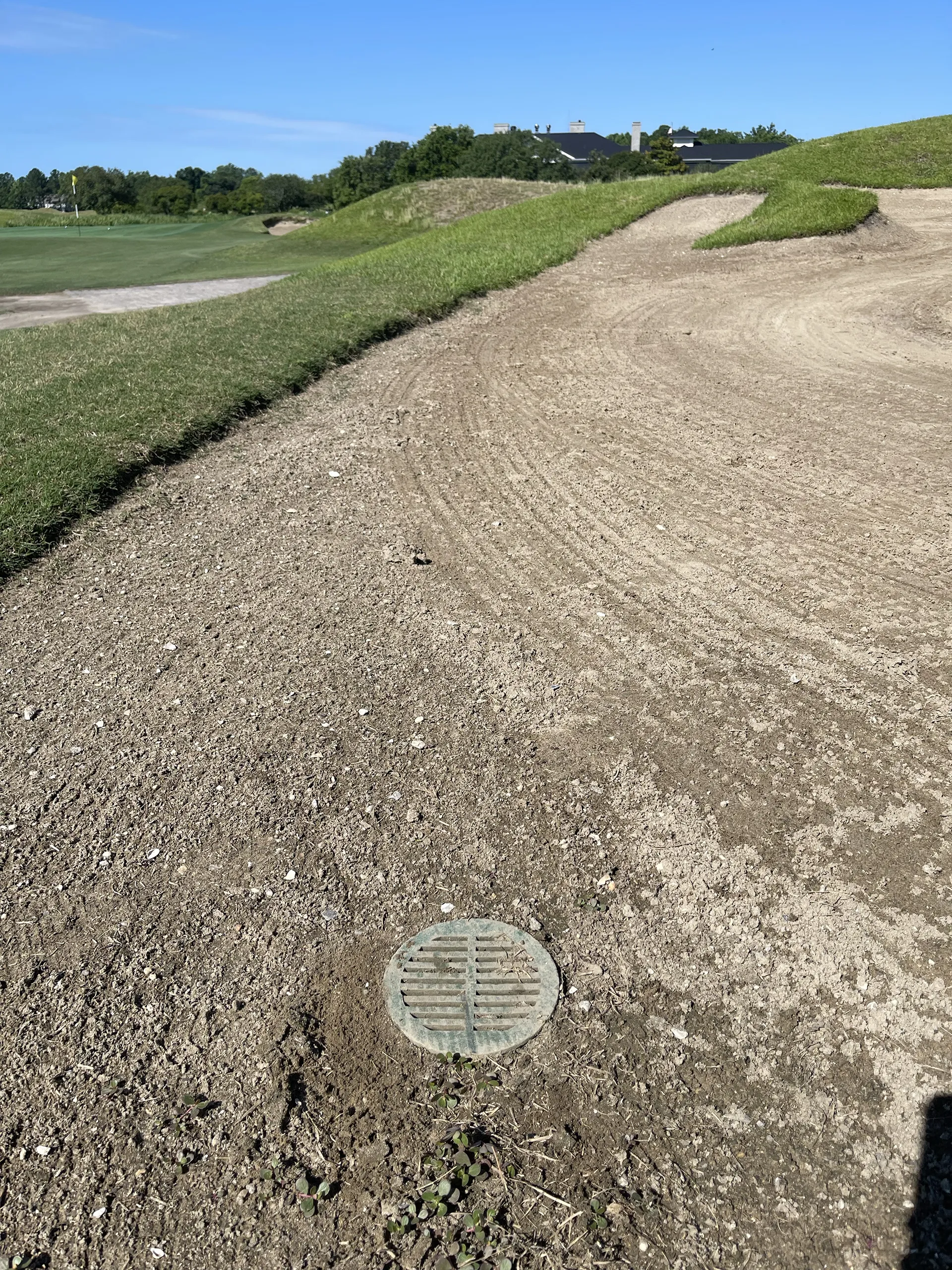

Drainage Connect lists surface drains, basins, fittings and ACO Sport track systems. For subsurface work, NDS EZflow is a gravel-free French-drain option in the manufacturer's wider range; confirm the project configuration and supply scope. An outside-catalog comparison is ADS AdvanEdge, a perforated panel pipe used for athletic turf, with a narrow profile suited to narrow trench layouts. Compare filtration, soil compatibility, collector spacing and outlet capacity; neither product replaces the field profile design. See also golf course drainage.

Coordinate kitchens, wet rooms and aquatic systems

A venue package extends beyond outdoor stormwater. Match each wet area to its waste stream, floor construction and cleaning process.

• Kitchens and concessions: the listed ACO sanitary stainless range includes point, linear and sink drainage, as described in ACO's sanitary range. Select outlet, strainer, cleanability, floor seal and required plumbing provisions together. Point drains or floor sinks may fit better than a long trench. See restaurant kitchen drainage.
• Grease management: listed Josam Lite Line interceptors are possible components of the approved plumbing design. Use the JG-0100S submittal to match actual fixture discharge and the selected unit's performance, with service access. A grease interceptor does not authorize every waste stream.
• Below-grade collection: establish gravity outlet feasibility first. Where pumping is required, coordinate storage, duty, controls, alarms, backup strategy and maintenance with the consequences of failure.
• Aquatic areas: distinguish deck runoff, splash-feature collection, recirculation and pool overflow/backwash. The aquatics design and health authority determine connections and treatment; an outdoor channel is not automatically an approved part of a pool circulation system. See splash pads and aquatic facilities.

Choose materials for the actual cleaning exposure

Document detergents, disinfectants, deicing salts, concentration, temperature, contact time and rinse practice. Review the body, grate, rails, sealants, gaskets and pipe connections. Stainless rails on a composite channel do not create an all-stainless hygienic drain. ACO's stainless comparison explains the improved chloride resistance of 316L over 304, but neither grade is immune to corrosion. Hot washdown or concentrated pool chemicals need specific compatibility confirmation.

Compare systems by the zone they serve

The following are project options, not a ranked package. Match inlet geometry, hydraulic performance, loads, surface interface and service access before material or appearance. The channel grate catalog and basin grate catalog help identify exact tops. Listings do not establish stock, lead time or project approval.

Josam Pro-Plus is another listed general-purpose option, not only a substitution for an existing specification. Its SMC/GRP body provides a different material choice; compare the exact rail, grate, securement, installation and chemical limits with Filcoten, ACO and NDS. For required municipal castings, use the specified manufacturer and dimensional/load submittal; a brand name or photo alone does not establish interchangeability.
