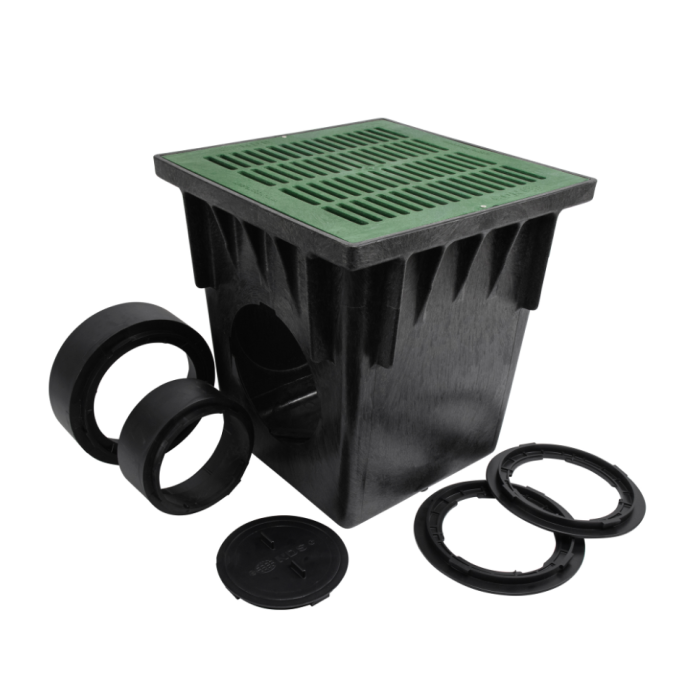

NDS 18" Catch Basin Kit (Green Grate)

Product Details: NDS 18" Catch Basin Kit (Green Grate)

The NDS 18" Catch Basin Kit (Green Grate) is a vital part of the NDS drainage system. This product is designed to effectively manage excess surface water from lawns, landscapes, residential driveways, and garages. Made to withstand regular use in both landscaping and hardscaping projects, this kit is durable and built to last. The NDS 18" Catch Basin Kit (Green Grate) helps prevent the clogging of pipelines by collecting debris and other particles, ensuring the proper flow of water. Grates are customizable, with a variety of patterns and colors to choose from, allowing for seamless integration into your surroundings. Whether you're looking to manage water buildup in common areas or divert water away from structures, erosion-prone landscapes, or areas with poor drainage, the NDS 18" Catch Basin Kit (Green Grate) has you covered. Each kit includes ONE 2-Hole 18" NDS Catch Basin (#1800), a Green HDPE Catch Basin Grate (#1812), a Universal Adapter Plug (#1206), a 6" Universal Locking Outlet (#1266), a 8" Universal Locking Outlet (#1888), Two Reducer Rings (#1890), and one Universal Outlet in 3" & 4" (#1243) for your convenience. With everything you need in one package, the 18" Catch Basin Kit (Green Grate) is the ultimate solution for managing and controlling surface water in your projects.

Quick Look

• Dimensions: 17-11/16" LENGTH x 17-11/16 WIDTH x 18-9/16" HEIGHT
• ONE 2-Hole 18" NDS Catch Basin (#1800), a Green HDPE Catch Basin Grate (#1812), a Universal Adapter Plug (#1206), a 6" Universal Locking Outlet (#1266), a 8" Universal Locking Outlet (#1888), Two Reducer Rings (#1890), and one Universal Outlet in 3" & 4" (#1243)
• Requires either NDS #1206, #1242, #1245, #1266, #1888, or #1889 universal outlet to connect pipe
• For 8-inch drain pipes, use adapters NDS #1888 or #1889; for 6-inch drain pipes, use adapter NDS #1266; for 3-inch and 4-inch drain pipes, use adapters NDS #1242, #1243, or #1245 (sold separately)
• ADA Compliant
• Openings on basin lock outlet adapters in place
• The connections between the catch basin and the sump boxes, risers, and universal outlets are soil tight, not water tight. Adding a bead of water proof silicone on each surface being connected will create a water tight connection
• To ensure a watertight connection between the catch basin and sump boxes, risers, and universal outlets, apply a bead of waterproof silicone to each surface before making the connection
• Load Recommendation: Varies on grate selection
• Material:(HDPE) High Density Polypropylene
• Constructed with UV inhibitors, enhanced protection against the damaging effects of ultraviolet (UV) light
• Use with NDS 18" Catch Basin products
• Used for capturing and redirecting excess water to safe locations
• Ideal for residential, commercial, and industrial environments to manage large volumes of water
• Catch basin universal outlet must be used to connect pipes to the catch basin; Connect to 8 in. Drain Pipes using outlet adapters (#1888, #1889); 6 in. Drain Pipes using outlet adapter (#1266); 3 in. & 4 in. Drain Pipes using outlet adapters (#1242, #1243, #1245); seal opening with outlet plug (#1206); outlet adapters & plug sold separately
• Keyed openings on basin lock outlet adapters in place

Additional Resources

Installation Instructions
