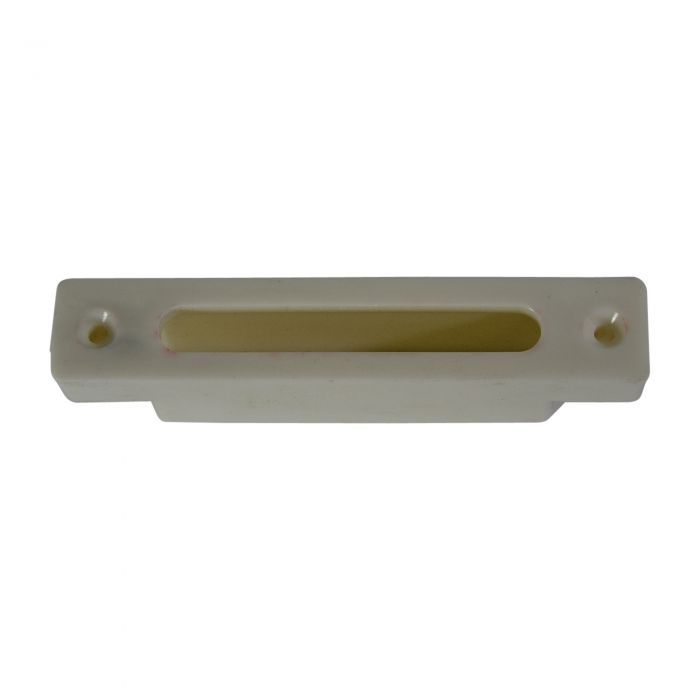

NDS Dura Slope Radius Coupling Grate, Plastic Slotted

$7.20
In stock
SKU
DS-660MG

Call in directly to 803-324-3225 for a personalized quote.

Product Details: NDS Dura Slope Radius Coupling Grate, Plastic Slotted

Designed specifically for draining 400-meter running tracks, Dura Slope Radius Couplings allow 3 degrees of deflection between trench drain sections, making an adjustable radius easily achievable for standard tracks and other curving applications.

Quick Look

  • Class B Load Rated(65-175 PSI)
  • ADA Compliant
  • Material: High Density Polyethylene (HDPE)
  • Grate Opening: 1.88 Sq. Inch Per Each
  • UV Inhibitors
  • Open Area between Grates; 3/8” x 6”= 2.25 Sq. Inches
  • Head Pressure / Flow Rate: 1.0” = 160.83 GPM Per Foo
  • Product Class: 25DS
Shop the entire line of NDS Dura Slope Products

Additional Resources

How To Install A Deep Dura Slope Channel Drain
NDS Dura Slope Radius Coupling Grate, Plastic Slotted Technical Specifications
Dura Slope Trench Drain Catalog
Deep Dura Slope Channel Drain Specification Video
Deep Dura Slope Channel Drain On A Work Site
Dura Slope Installation Manual
Track Dura Slope Trench Drain System Brochure

Installation Instructions

NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension With Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class A & B 4" Encasement Wood Member Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class C 6" Encasement Wood Member Suspension Method
NDS Dura Slope Trench Drain Installation Detail Load Class D 6" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Form Board Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Asphalt
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension with Pavers
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Rebar Suspension
NDS Dura Slope Trench Drain Installation Detail Load Class D 8" Encasement Wood Member Suspension Method
More Information
Part Number DS-660MG
Color Gray
Width 6"
Length 6"
