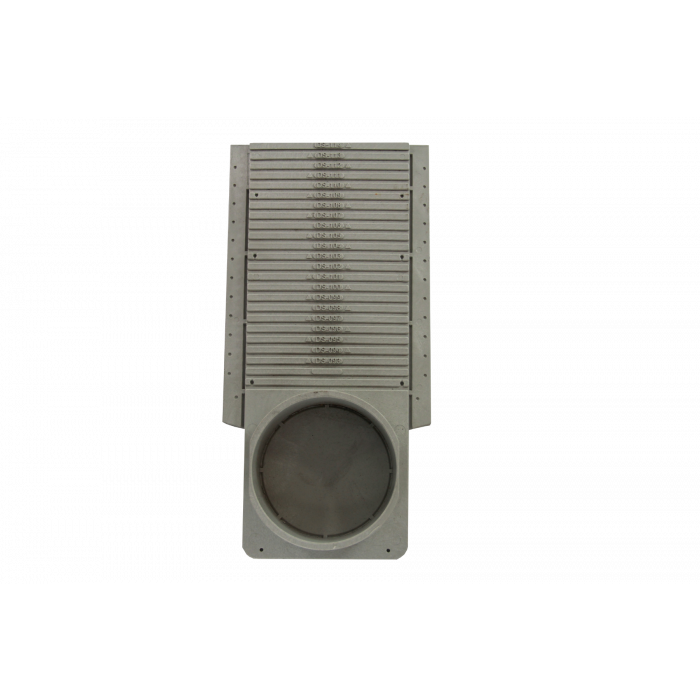

NDS Dura Slope Universal End Outlet

Product Details: NDS Dura Slope Universal End Outlet

NDS Dura Slope is a 6 5/8" wide, 48" long trench drain system with a built-in slope of 0.7%. "N" sections are non-sloped and used to extend the length of the system. Each channel section is molded of gray structural foam polyethylene with UV inhibitors 4" inside diameter with a 2" radius bottom.ProFit locking system locks the grate to the integral frame and supports the product during installation. DuraLoc integral joint lock prevents joint movement during installation, with no extra clamps or screws needed. Interlocking tongue and groove joints and bottom outlet on each channel section 0.7% built-in slope. The NDS Dura Slope Universal End Outlet is used to filter water throughout the outlet in Dura Slope trench drains.

Quick Look

• HDPE
• Replaces DS-127, which will not work with DS-113 or deeper channels
• Fit 4" S&D Pipe
• Slides into upstream (female) end
• Requires #DS-123 screws for use on downstream (male) end
• Use with NDS Dura Slope Trench Drains
• Designed to cap off Dura Slope trench drains at the end of a run
• If added to the upstream (female) end, slide the Universal End Cap or Universal End Outlet into the slot on the end of the channel
• If added to the downstream (male) end, phillips head #6 x ¾” screws must be used to screw the Universal End Cap or Universal End Outlet to the Dura Slope Channel (screws sold separately)
• Product Class: 25DS
