NDS Slim Channel Grate

As low as $10.39
In stock
SKU
NDS 9241

Dimensions: Length: 36" x Width: 2.25"


Color: #9241 (White), #9243 (Gray), and #9242 (Sand)


For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

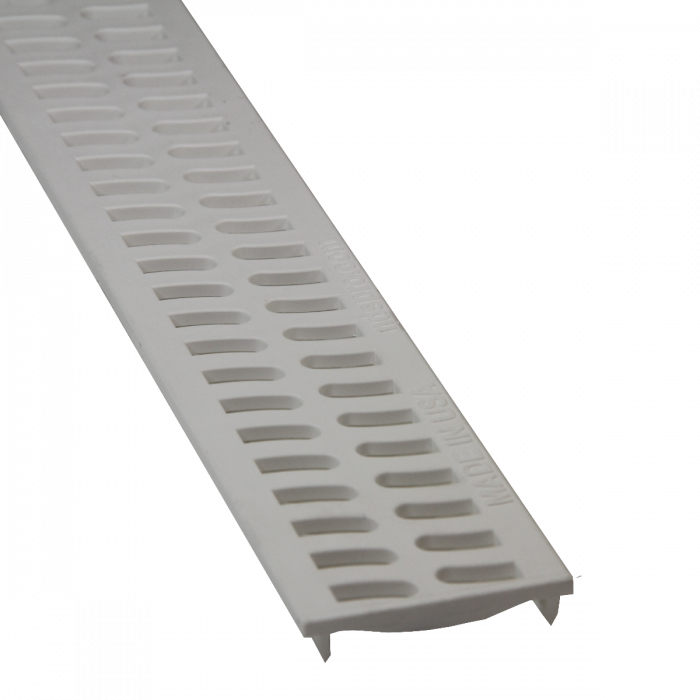

Product Details: NDS Slim Channel Grate

NDS Slim Channel is the newest and most innovative channel drain product line yet from NDS. Taking inspiration from both the Micro and Mini Channel series, the Slim Channel system captures the best aspects of both prior channel series. The Slim Channel series features a less-pronounced version of the flying-buttress prominent in the Mini Channel and Spee-D Channel series. Slim Channel internal couplings draw inspiration from the internal couplings of the Micro Channel series. As with most product lines by NDS, there's a large assortment of grating options available to ensure your Slim Channel drainage system looks as sharp as the rest of your hardscape. The NDS Slim Channel grates come in three colors: White (#9241), Grey (#9243), and Sand/Tan (#9242). The Slim Channel series by NDS interfaces with Schedule 40 PVC pipe and fittings.

Quick Look

  • Use With NDS Slim Channel Drain (#9206)
  • Color Choices: White (#9241), Grey (#9243), and Sand/Tan (#9242)
  • 1/4" x 5/16" Grate Opening
  • Dimensions: 36" LENGTH x 2.25" WIDTH
  • ADA Compliant
  • Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)

NDS Slim Channel FAQS

Additional Information

Slim Channel Catalog
NDS Product Catalog
NDS Slim Channel Grate - Technical Specifications
NDS Slim Channel Product Overview
NDS Channel Grate Outlet Flow Capacities
Channel Drain FAQS
Load Rating Information Guide

Installation Instructions

NDS Slim Channel Landscape Traffic Installation
NDS Slim Channel Pavers Installation
NDS Slim Channel Slab Installation
More Information
Part Number NDS 9241
Length 3'
Width 2-1/4"
Grate Opening .248"
Open Surface Area 7.01 sq. in / linear foot
Gallons Per Minute 21.44 GPM / linear foot
