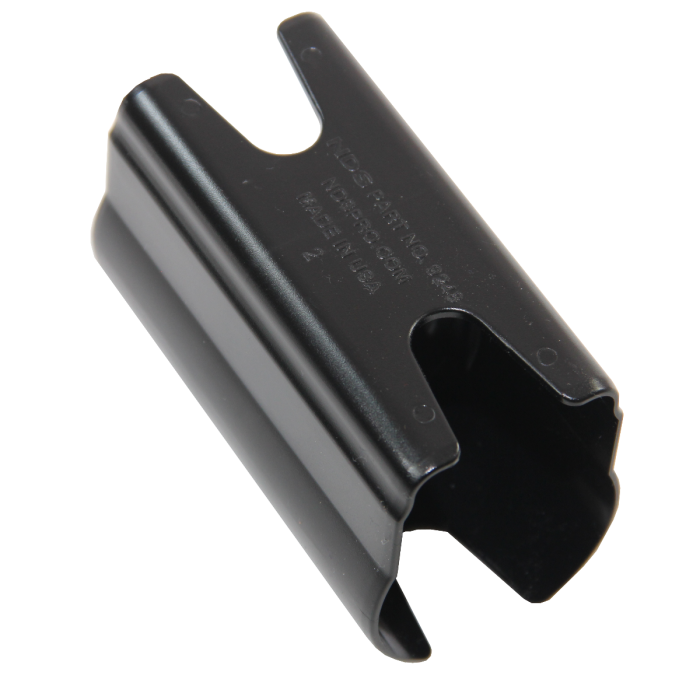

NDS Slim Channel Coupling

Product Details: NDS Slim Channel Coupling

NDS Slim Channel is the newest and most innovative channel drain product line yet from NDS. Taking inspiration from both the Micro and Mini Channel series, the Slim Channel system captures the best aspects of both prior channel series. The Slim Channel series features a less-pronounced version of the flying-buttress prominent in the Mini Channel and Spee-D Channel series. Slim Channel couplings draw inspiration from the internal couplings of the Micro Channel series. As with most product lines by NDS, there's a large assortment of grating options available to ensure your Slim Channel drainage system looks as sharp as the rest of your hardscape. The Slim Channel series by NDS interfaces with Schedule 40 PVC pipe and fittings.

Quick Look

• Use With NDS Slim Channel Accessories
• Call In Directly for our NDS 9 FT Slim Channel Drain Pricing
• Snap-in channel grates are removable, making it easy to clean debris from the inside channel for maintenance
• NDS Slim Channel Couplings (#9248) are required for installation, Sold Separately
• The Slim Channel Drains connect securely with internal couplings, and the bottom outlet and end caps with knockout outlets can be attached to 1-1/2" Schedule 40 PVC pipes
• Secure a watertight connection with PVC glue between the outlet and pipe or between channels. Easy installation is made possible with anchor clips that attach the channel to the base.
• Dimensions: The NDS Slim Channel Drains measure 2-1/4 inches wide, 3 inches in height, and 6 feet in length. Lengths can be easily customized with a saw
• ADA Compliant
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)
• Call In Directly for our NDS 9 FT Slim Channel Drain Pricing
