Warehouse & Distribution Center Drainage

One address, distinct water streams and traffic zones

A distribution center can need several drainage systems, while its dry storage floor may need no routine floor drainage. For a U.S. project, map the sources, receiving systems and actual traffic before choosing products.

• The roof — collect roof areas through the building’s primary and any required emergency drainage; keep their discharge paths clear of doors and pedestrian routes.
• The truck court and docks — capture pavement runoff and diverted run-on without creating a low point that sends overflow into the building.
• The trailer yard, entrance and employee lot — separate heavy truck routes and trailer support positions from genuinely lighter pedestrian and passenger-car areas.
• The interior — distinguish dry storage from wet cleaning, equipment condensate/defrost, mechanical test discharge and potentially contaminated spills.

Plan construction phasing, concrete cure time and safe maintenance access around operating doors. A drain that cannot be isolated and cleaned without traffic crossing an open trench is an operational problem even when its hydraulic design is adequate.

What needs collection, treatment or containment?

The roof and the leaders

Coordinate roof drains, scuppers, leaders and emergency overflow with the building plumbing design. At grade, a closed connection, basin or channel may receive a leader, depending on the approved layout. Avoid uncontrolled discharge that wets door approaches or can freeze on walking routes. Do not divert emergency roof discharge into a system whose surcharge defeats its purpose; see downspout drainage.

Surface collection on pavement and slab

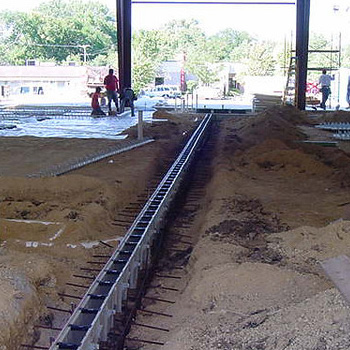

Trench and channel drains intercept a line of flow; catch basins collect at grading low points. Use grates and fittings matched to the complete assembly. Redirect clean run-on before it reaches a recessed dock or dirty service pad when grading permits.

Groundwater and underdrains

Subsurface drainage addresses water within soil or pavement layers. Its need depends on geotechnical conditions, filtration, groundwater levels and a workable outlet. It does not replace surface inlets, and not every slab, detention basin or yard needs an underdrain grid. Check how underdrains affect infiltration or lined storage.

A conventional French drain can use aggregate, filter material and perforated collection pipe. NDS EZflow is a gravel-free alternative in the manufacturer’s wider range. Confirm sourcing and an installation suitable for the actual cover and vehicle loads before specifying it beneath a truck court.

Washwater, spills and approved discharge

Keep detergents, battery-service liquids, food residues, oils and spill cleanup out of the storm system. Use dry cleanup and source containment first, then route collected liquids to an approved wastewater connection, recovery system or off-site disposal. Assess industrial stormwater permit applicability from the facility’s operations and exposure. EPA’s transportation and warehousing guidance describes loading, cleaning and spill-control practices; it is not a blanket permit determination for every warehouse.

Drainage Connect lists ACO Oleopator and Spill Control oil-water separators. These may address suitable free-oil streams; they do not automatically remove emulsified oil, dissolved chemicals or battery electrolyte. Select from actual flow, solids, oil properties and detergent chemistry using ACO’s separation guidance. Sewer discharge must meet receiving-utility limits and applicable EPA pretreatment prohibitions.

Where leakage containment is required, the listed ACO Aquaduct Double Containment uses nested trenches, as documented in ACO’s catalog. Secondary containment of a leaking carrier is different from sufficient usable storage for a release. Establish compatible liners/joints, isolation, leak inspection and the required retained volume together.

Do the water arithmetic before choosing channel width

Survey contributing areas and elevations, separate roof and pavement catchments, and avoid counting the same runoff twice. Use locally accepted rainfall intensity, duration and storm frequency. The following numbers are illustrations, not a warehouse design storm or product capacity.

One inch of rainfall on 1,000 sq ft equals about 623 U.S. gallons before losses. Thus:

• A hypothetical 400,000 sq ft roof receives roughly 249,000 gallons in a 1-inch storm.
• A separate 6-acre court receives roughly 163,000 gallons; an assumed 0.95 runoff fraction would give about 155,000 gallons of runoff.

For an illustrative peak rate, the customary approximate Rational expression is Q (cfs) ≈ C × i (in/hr) × A (acres). With C = 0.95, i = 1 in/hr and A = 6 acres, Q ≈ 5.7 cfs, or 2,560 gpm. At assumed intensities of 3 and 4 in/hr, the same calculation gives approximately 7,680 and 10,240 gpm. Select intensity for the catchment’s time of concentration and the locally required event. Peak flow alone does not size detention; route the storm inflow against the allowed release.

The runoff calculator and Sizing for Storms provide screening tools. Check inlet capture and bypass, channel depth and slope, outlet losses, pipe capacity, downstream water level and a blocked-inlet overflow path together. A grate’s listed intake or nominal outlet diameter is not installed system capacity.

For comparison only, Manning full-flow calculations with actual circular inside diameters below, n = 0.013 and slope S = 0.01 ft/ft give approximately:

• 4-inch — 85 gpm · 6-inch — 252 gpm · 8-inch — 542 gpm
• 12-inch — 1,599 gpm · 15-inch — 2,899 gpm · 18-inch — 4,715 gpm

These use Q = (1.486/n) × A × R^2/3 × S^1/2 in U.S. customary units, with R = diameter/4 for a full circular pipe. They exclude entrance, junction and exit losses and downstream backwater. Follow the FHWA HEC-22 drainage design framework with actual pipe data.

A nominal 15-inch connection therefore does not establish that one inlet will safely accept 2,560 gpm. Distributed inlets, multiple outlets, revised grading or storage may improve the layout. Separate collection points still share a failure risk if they join one constrained downstream pipe. At a hypothetical 1% invert slope, 300 feet requires 3 feet of fall; pre-sloped channels also deepen along their sequence. Select grades for the hydraulic and solids conditions rather than promising that a fixed slope is self-cleaning.

Load class, wheel contact and the installed assembly

EN 1433 uses specified test forces and application groups, summarized in BIRCO’s class guidance:

• A15 — 15 kN; areas used only by pedestrians and cyclists.
• B125 — 125 kN; pedestrian areas and car parking, subject to actual use.
• C250 — 250 kN; specified kerb/edge locations, not general truck aisles.
• D400 — 400 kN; road traffic and parking locations within the documented assembly’s application.
• E600 — 600 kN; high wheel-load locations.
• F900 — 900 kN; exceptionally high wheel-load locations.

Use the load recommendation guide to organize the submittal, then verify the exact channel, rails, grate, retention hardware and installation against project loads.

Compare the actual forklifts, trucks and support pads

Record loaded axle and wheel reactions, tire type, contact geometry, crossing frequency, speed, turning and braking. Include pallet-jack and automated vehicle wheels, yard tractors and any container-handling equipment actually used. A forklift’s lifting capacity is not its operating weight; neither the forklift nor the semi automatically governs every crossing.

Illustrative contact-pressure comparison: a 6,000-lb wheel reaction spread over 24 sq in averages 250 psi; over 60 sq in it averages 100 psi. The pressure at individual grate bars depends on their geometry and the wheel contact. This arithmetic does not select a class or prove fatigue/impact performance. Keep trailer landing gear, outriggers and jack stands off the drain unless the actual support load and installed arrangement are explicitly approved by the designer and manufacturer.

The installation must transfer wheel loads through the grate, frame and supporting construction. Follow the selected manufacturer’s details for concrete support, reinforcement, joints, pavement transition, grate recess, curing and retention. These details vary; ACO’s polymer-concrete installation manual is one product-specific reference. Replacing a grate with a stronger one does not automatically upgrade an existing channel or basin.

Where each collection approach fits

Dock-door thresholds and drive-in doors

A recessed loading dock may need an interceptor at its low approach; an elevated dock has different geometry. At drive-in doors, locate collection to intercept apron runoff while clearing door tracks, levelers, pits and foundations. Check both water bypass under the door and every vehicle crossing. A threshold trench is one option alongside grading, upstream interception and weather protection.

Dry aisles, wash bays and mechanical rooms

Keep dry storage dry through envelope repairs, source capture and appropriate cleanup. Add a floor drain where an identified wet operation needs it, rather than putting trenches across every aisle. A wash bay may need linear collection; a local equipment discharge may suit a point receptor with the required air gap or indirect connection. Confirm flow and duration for defrost and fire-pump testing instead of assuming every interior discharge is small. Coordinate freeze protection and equipment/plumbing requirements.

Battery charging alone is not evidence that a floor drain is needed. Where electrolyte is handled, coordinate spill response and compatible containment with the battery system. OSHA’s battery guidance distinguishes charging-only operations from electrolyte service; a flushing provision does not authorize discharge to a storm inlet.

The court and trailer yard

Use point inlets where grading concentrates flow and linear channels where a broad sheet of water must be intercepted. Check ponding depth against trailer maneuvering, door elevations and pedestrian routes. Compare pre-sloped, stepped and constant-depth arrangements using the available invert depth; built-in slope does not eliminate excavation. Larger channel width alone does not carry wrap, gravel or banding through an outlet.

12-inch, 18-inch and 24-inch basins offer different storage and connection options. Match the outlet fittings to the specified pipe. Place cleaning access from reach, run geometry and local requirements; an arbitrary 100-foot spacing is not a universal rule.

Grate openings and access

Compare ductile iron, cast iron and steel by documented load, corrosion and retention performance. Material alone does not approve hard-wheel traffic. No bar pattern reliably sheds all stretch wrap: housekeeping and accessible debris removal remain necessary.

Where ADA surface-opening provisions apply, §302.3 limits openings to passage of a 1/2-inch sphere and places elongated openings perpendicular to the dominant travel direction. Verify the finished assembly, surface stability and slip resistance. Small caster or pallet-jack wheels may require a tighter pattern even when an ADA opening criterion is met.

Cleaning, compatibility and failure response

Obtain the actual cleaners, concentrations, maximum temperatures and exposure times, including deicers, oils, electrolyte and spill-cleanup products. Check the body, rails, grate, coating, joints, seals and downstream pipe separately. Neither stainless steel nor a general chemical-resistance label guarantees compatibility with hot caustic, chloride cleaners or solvents.

Sweep and pick up wrap before washing. Inspect after initial storms and cleaning cycles, then set service intervals from observed debris, sediment depth and manufacturer instructions. Isolate traffic, lift grates with suitable tools, remove captured solids and clean within permitted pressure/temperature limits. Restore locks and inspect settlement, cracking, corrosion and joint leakage. Classify removed liquids and solids for appropriate disposal; do not flush contaminated sediment into the storm system. Test pumps, alarms and isolation devices where fitted, and document who responds to ponding or a blocked inlet.

Catalog options, selected by the duty

The following families are listed in Drainage Connect’s catalog. Listings do not establish stock, delivery timing or project approval. Compare an exact assembly and installation, including maintenance access, before requesting a quote or ordering components.
