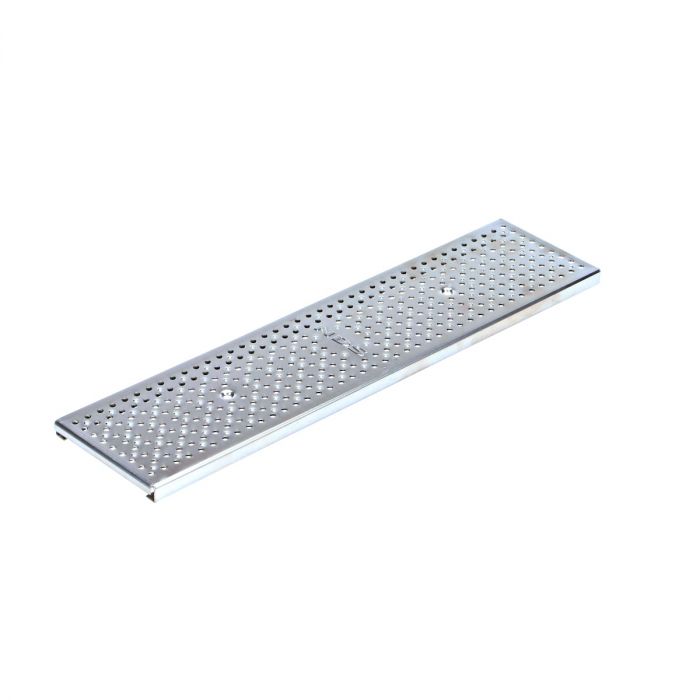

NDS 2' Galvanized Steel Perforated Channel Grate

$68.78
In stock
SKU
DS-228

Dimensions: L: 24" x W: 6"


Material: Stainless Steel (DS-226), Galvanized Steel (DS-228)

Product Details: NDS 2' Galvanized Steel Perforated Channel Grate

Dura Slopeâ„¢ is a high quality, dependable, and best-in-class trench drain system. Each Dura Slope Trench Drain has Various grating options, Stainless steel, galvanized, cast iron, and plastic grates available! This item is a Perforated galvanized steel, pedestrian traffic rated, heelproof, ADA compliant channel grate.

Quick Look

  • Galvanized
  • Heel-Proof
  • Material: Stainless Steel (DS-226), Galvanized Steel (DS-228)
  • ADA Compliant
  • Class A Load Rated (0-60 PSI)
  • Product Class: 25DS
  • Will accommodate 23.34 gallons per minute per foot with 1/2” of head
  • Open surface area 7.63 sq. inches per ft
  • Fits: Use with Dura Slope Channel Drains and Dura Slope Catch Basin (DS-340)
Shop the entire line of NDS Dura Slope Products

Additional Resources

How To Install A Dura Slope Trench Drain
NDS 2' Galvanized Channel Grate Technical Specifications
NDS Dura Slope Trench Drain Catalog
NDS Deep Dura Slope Channel Drain Specification Video
How To Use A NDS Deep Dura Slope Channel Drain On A Work Site
NDS Dura Slope Installation Manual
More Information
Part Number DS-228
Color Grey
Length 24"
Width 6"
Grate Opening 1/4"
Gallons Per Minute 7.63 in sq. per foot
