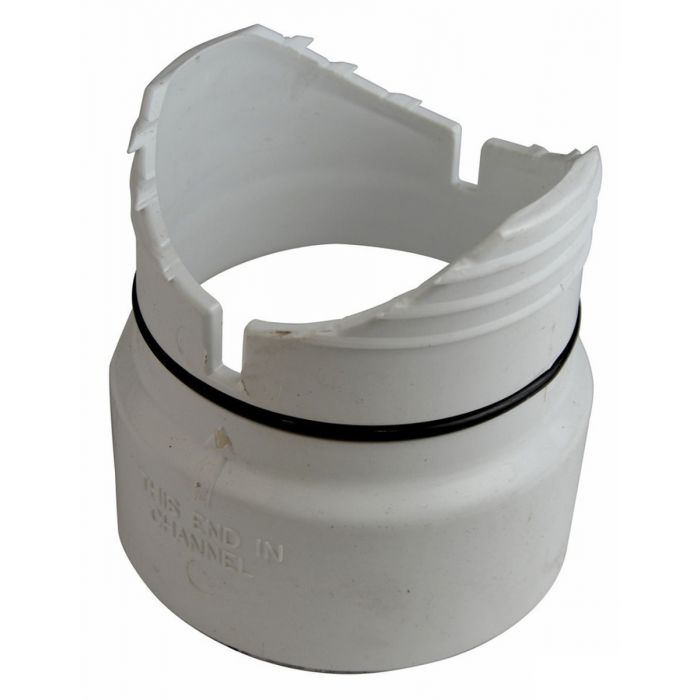

NDS Dura Slope Bottom Outlet Adapter

Product Details: NDS Dura Slope Bottom Outlet Adapter

NDS Dura Slope is a 6 5/8" wide, 48" long trench drain system with a built-in slope of 0.7%. "N" sections are non-sloped and used to extend the length of the system. Each channel section is molded of gray structural foam polyethylene with UV inhibitors 4" inside diameter with a 2" radius bottom.ProFit locking system locks grate to the integral frame and supports the product during installation. DuraLoc integral joint lock prevents joint movement during installation, with no extra clamps or screws needed. Interlocking tongue and groove joints and bottom outlet on each channel section 0.7% built-in slope.

Quick Look

• HDPE
• Use with NDS Dura Slope Trench Drains
• Bottom outlets, drain outlets, and catch basins connect to the deepest end of the run.
• Fits 4" S&D Pipe
• If connecting to 4” sewer and drain (SDR35) pipe, cut out the bottom drain and insert the #DS-126 Bottom Outlet Adapter
• If using 4” schedule 40 pipes, connect NDS part # 56-44 flexible coupling to the 4” pipe and then to the bottom drain of the channel. Tighten the clamps to secure in place
• Other diameter pipes can be connected using the appropriate flexible coupling
• Product Class: 25DS
