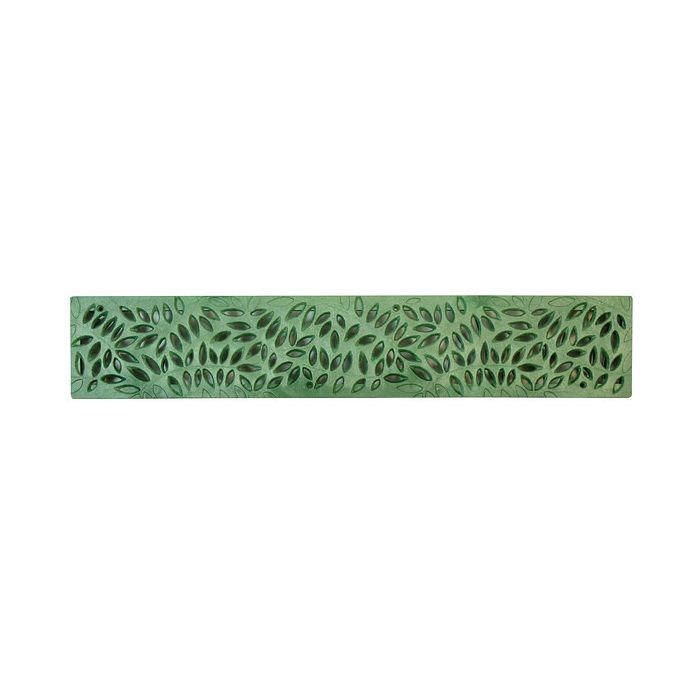

NDS Botanical Spee-D Channel Grate - Green
Dimensions:Length: 24" x Width: 4.42" x Height: 0.925"
Color: Black (#252), Gray (#252GY), Green (#252GR), Sand (#252S)
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS Spee-D Botanical Channel Grate
The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Botanical Channel Grate comes in four colors: Black (#252), Gray (#252GY), Green (#252GR), and Sand (#252S). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today!
Quick Look
- ADA Compliant
- Colors: Black (#252), Gray (#252GY), Green (#252GR), Sand (#252S)
- Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
- Dimensions: 24" LENGTH x 4.420" WIDTH x 3/4" Height
- Will accommodate 47.60 gallons per minute 1/2" of head
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- UV Inhibitors
- Material: UV Protected High-Density Polyethylene (HDPE)
- Install with Four FH #8 x 1 in. screws (Sold Separately)
NDS Spee-D Drainage FAQS
Additional Resources
NDS Spee-D Botanical Channel Grate Technical SpecificationsHow To Install A NDS Spee-D Channel Drain
NDS Spee-D Channel Technical Specifications
NDS Channel Grate Outlet Flow Capacities
Installation Instructions
NDS Spee-D Channel Drain Light Vehicular Traffic Installation - PaversNDS Spee-D Channel Drain Bottom Outlet Installation
NDS Spee-D Channel Drain End Outlet Installation
NDS Spee-D Channel Drain Typical Landscape Traffic Installation
NDS Spee-D Channel Drain Typical Light Vehicular Traffic Installation
NDS Spee-D Channel Drain Typical Pedestrian Traffic Installation
NDS Channel Drain Installation Guide
Brand | NDS |
---|---|
Part Number | 252GR |
Color | Green |
Length | 24" |
Width | 4.42" |
Grate Opening | 3/8 x 3-1/4" |
Open Surface Area | 7.78 |
Gallons Per Minute | 23.80 |
